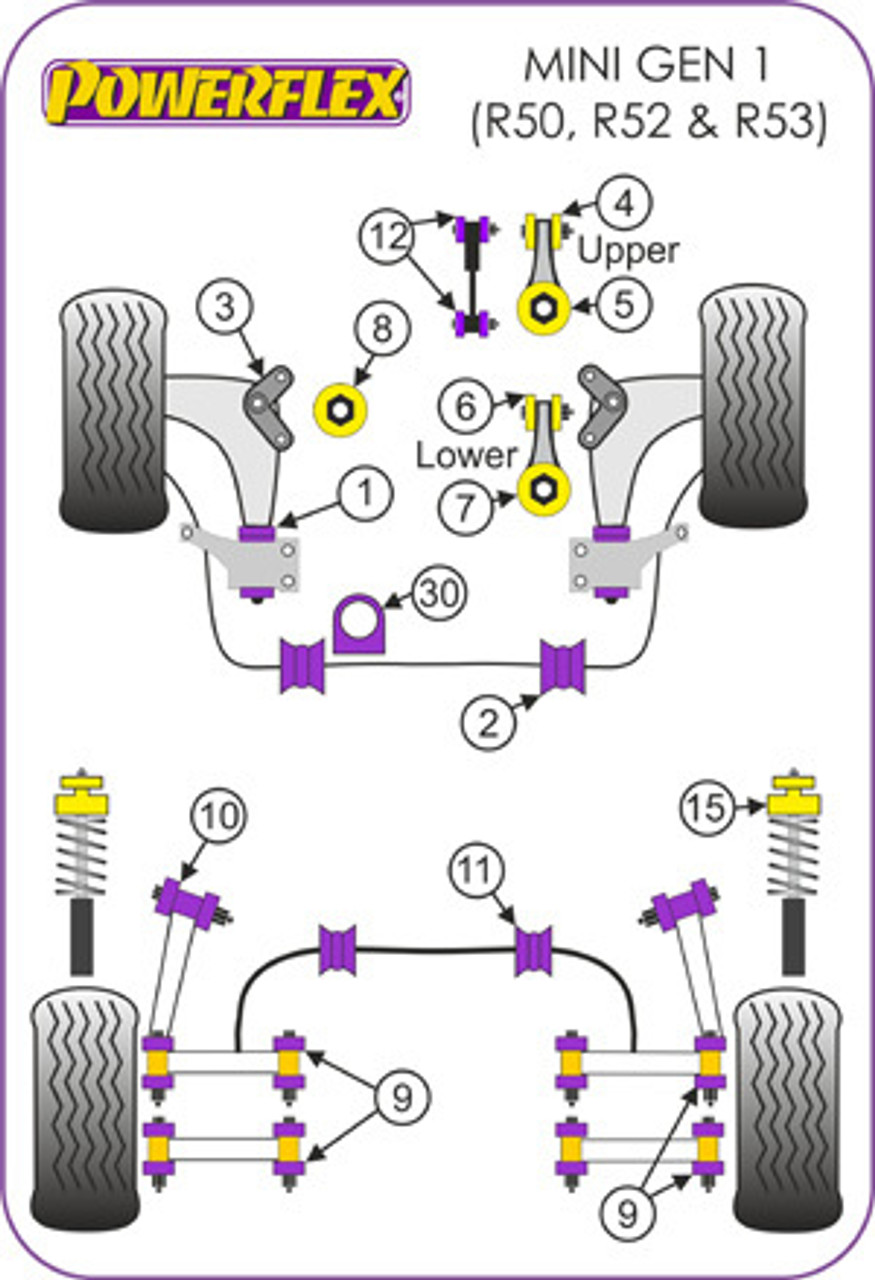

Use the diagram to find the correct bush and use the bar on the left on desktop or the black bar above the diagram named 'filter' on mobile

Notes:

  • PFF5-101G gives 2° additional caster, for standard caster use PFF5-101
  • PFF5-132G increases the negative camber by -1.25°
  • If fitting PFF5-132G we recommend  fitting PFF5-101G to bring the caster back to standard
  • PFR5-110 inserts fit into the OE bush of models up to 05/2003 with the OE trailing arm brackets 33326753973 and 33326753974. For a full replacement bush with 80mm diameter, please use PFR5-1105.
  • PFR5-1102 inserts will fit into the OE bush of models from 05/2003 with the OE trailing arm brackets 33306857795 and 33306857795. For a full replacement bush with 60mm diameter, please use PFR5-1104
  • PFF5-101MS is optional support if using PFF5-101 for motorsport
  • PFF5-104 & PFF5-105 Upper Engine Support Bracket bushes will not fit models 2004 onwards if using oil filled engine mounts
  • For position 7 Lower Engine Mount Large Bush use either PFF5-107 insert which fits into the original bush or PFF5-120 a complete replacement bush.
  • PFF5-108 inserts fit OE part number 22316754424.
  • PFF5-121 inserts fit Mini Gen 1 models from 2004 to 2006 for OE part 2231-6765335.
  • PFF5-122 inserts fit Mini Gen 1 Cooper S & JCW only for OE part 22316754422.
