T5 Transporter inc. 4Motion (2003-2015)

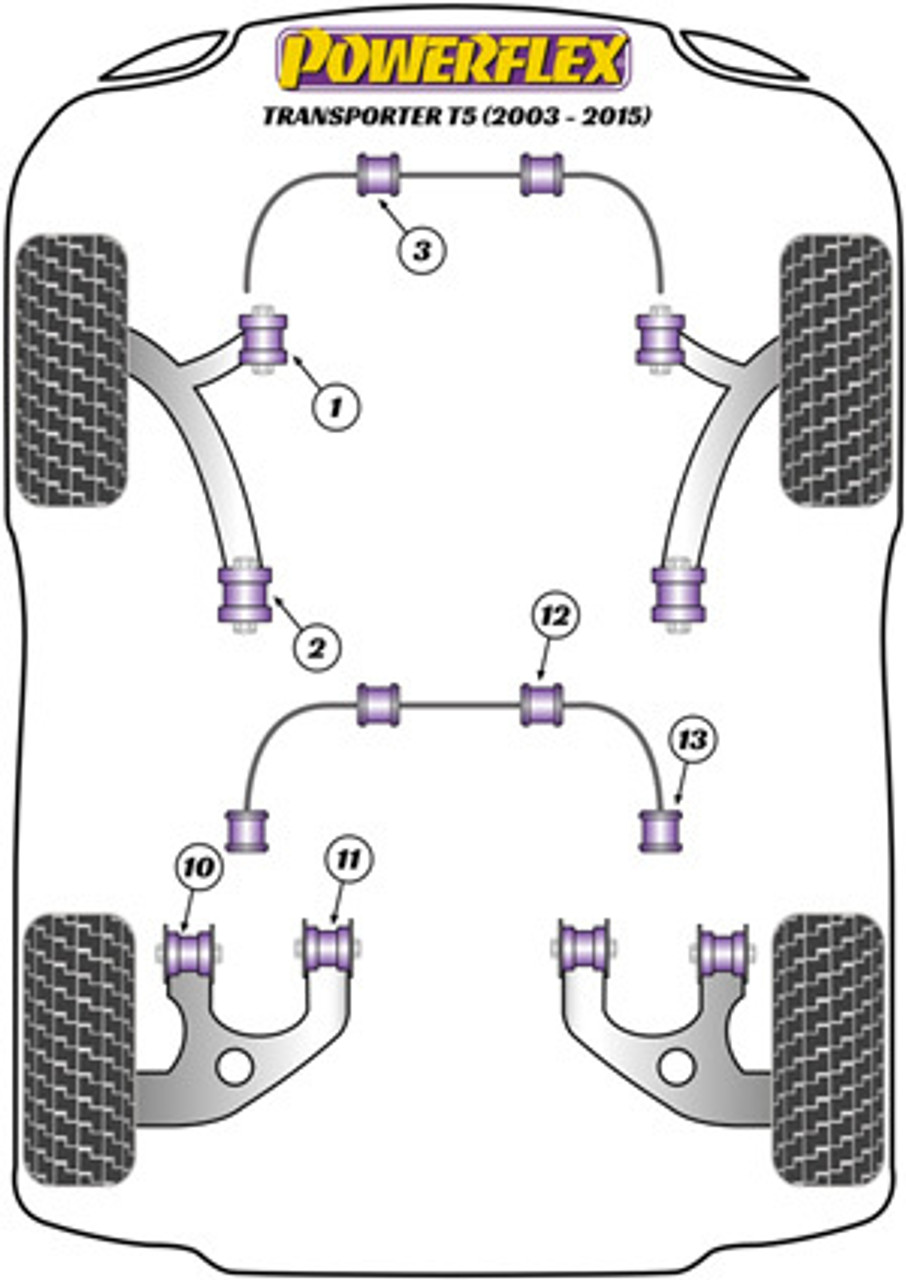

Powerflex Diagram T5 Transporter inc. 4Motion (2003-2015)

T5 Transporter inc. 4Motion (2003-2015)

Use the diagram to find the correct bush and use the bar on the left on desktop or the black bar above the diagram named 'filter' on mobile

Notes

  • PFF85-1301G allows on-car Camber adjustment of +/- 0.75 deg. Use PFF85-1301 if no adjustment is required
  • PFF85-1302G allows on-car Caster adjustment of +/- 0.6 deg. Use PFF85-1302 if no adjustment is required
  • PFR85-1310G and PFR85-1311G allows on-car adjustment of +/- 1.0 degree camber and toe. Use PFF85-1310 and PFR85-1311 if no adjustment is required
  • PFA100-14 are camber bolts for additional adjustment, they do not fit vehicles where the front shock absorber slides into the hub it has to have a bracket at the bottom of the shock with 2 bolt fixing to work.
