Lancer Evolution X CZ4A (10/07 - 05/16)

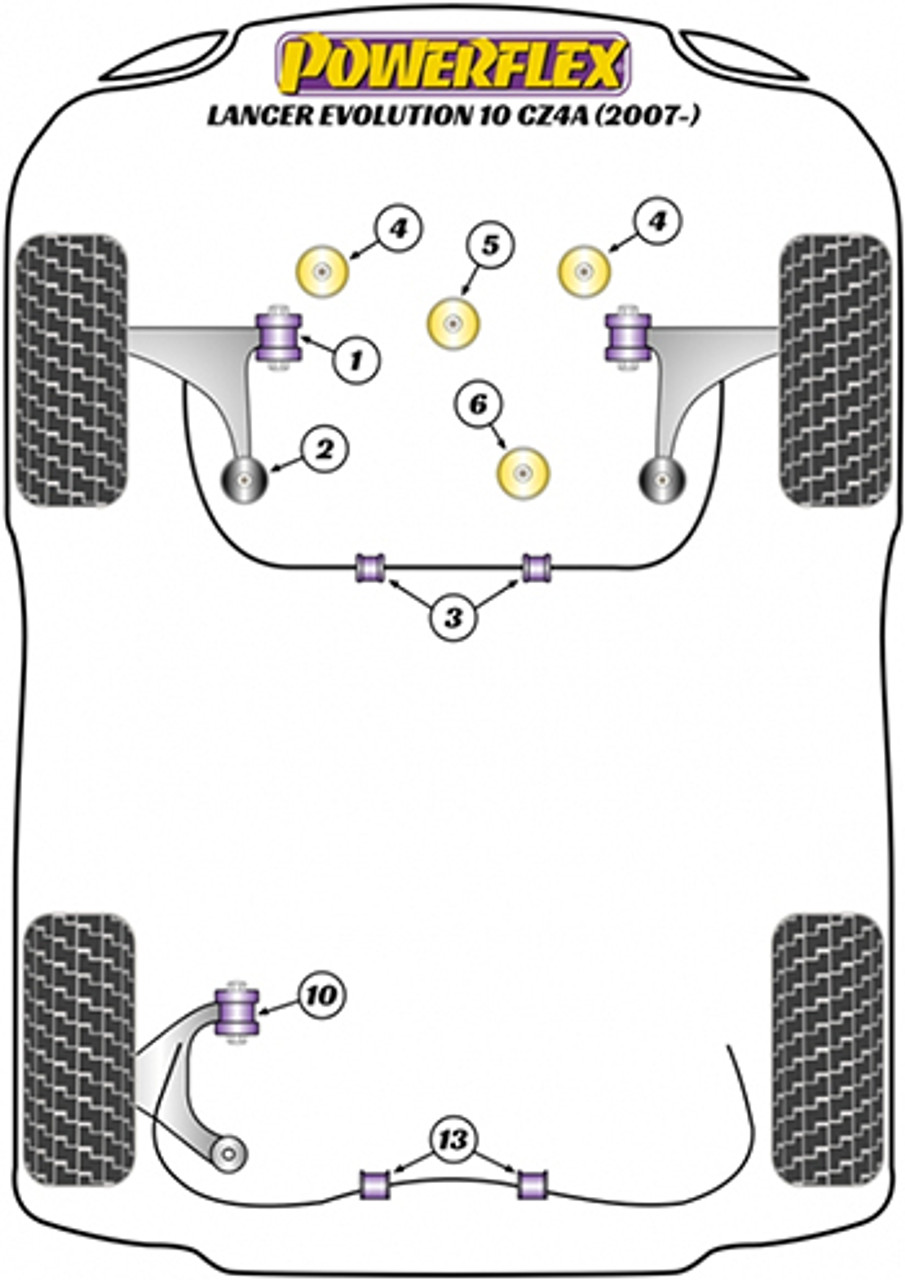

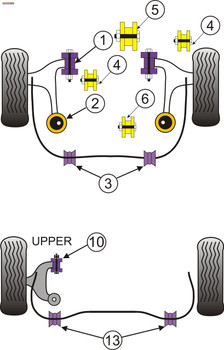

Powerflex Diagram Lancer Evolution X CZ4A (10/07 - 05/16)

Lancer Evolution X CZ4A (10/07 - 05/16)

  • Use either PFF44-401, which is non-adjustable, or PFF44-401G which is on-car camber adjustable
  • PFF44-402G is on-car caster adjustable
  • The Front Lower Diff Mount has 2 possible sizes. For 62mm use PFF44-107 and for 70.5mm use PFF44-108
  • Engine and Transmission mounts ending 'R' are for Road use and are made using our softer Yellow 70A material. For competition and race use, please use the Purple 80A 'non-R' part numbers. Increased NVH should be expected when fitting the 'non-R' parts.
  • PFF44-105(R) is used twice on the vehicle. It is used for the Upper Engine Mount as well as the Upper Gearbox Mount
